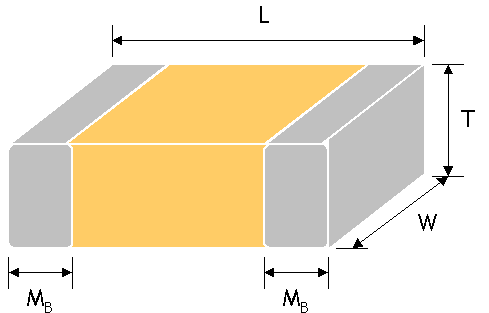

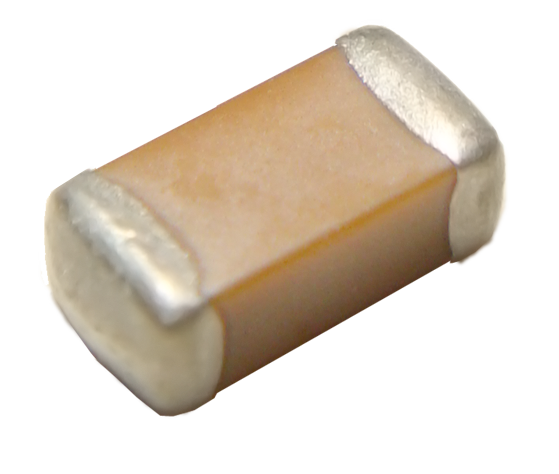

General Purpose Caps

0201 to 1812 Sizes
NP0, X5R, X7R, X6S, X7S
0.1pF~220uF
6.3V~100V

---

Description

Available Capacitance from 0.1pF to 220μF, Walsin's General Purpose Capacitor is RoHS Compliance, offering sizes from 0201 to 2225, and rated voltage from 6.3V to 100V in dielectrics of NPO, X7R, X6S, X7S, X5R, and Y5V.

Feature

• A wide selection of sizes is available (0201 to 2225).
• High capacitance in given case size.
• Capacitor with lead-free termination (pure Tin)

---

References

Dielectric	LxW	Rated Voltage	Capacitance pF µF 0.1 1 10 100 1000 0.001 0.01 0.1 1 10 100 1000	Capacitance range
NPO	1.60+0.15/-0.10x0.80+0.15/-0.10	50Vdc		0.0022µF-0.0022µF
X7R	0.60±0.03x0.30±0.03	16Vdc		0.0022µF-0.0022µF
		25Vdc		0.0022µF-0.0022µF
		10Vdc		0.0022µF-0.0022µF
	1.00±0.05x0.50±0.05	50Vdc		0.0015µF-0.0068µF
	1.60±0.10x0.80±0.10	50Vdc		0.0022µF-0.0047µF
	1.60+0.15/-0.10x0.80+0.15/-0.10	10Vdc		0.0022µF-0.0022µF
	2.00±0.20x1.25±0.20	25Vdc		0.0022µF-0.0047µF
	3.20+0.30/-0.10x1.60+0.30/-0.10	50Vdc		0.0047µF-0.0047µF
	3.20±0.40x2.50±0.30	100Vdc		0.0022µF-0.0022µF
X5R	1.00±0.05x0.50±0.05	6.3Vdc		0.0022µF-0.0022µF
		10Vdc		0.0022µF-0.0022µF
	0.60±0.09x0.30±0.09	6.3Vdc		0.0022µF-0.0022µF
	1.60+0.15/-0.10x0.80+0.15/-0.10	10Vdc		0.0022µF-0.0047µF
		16Vdc		0.0022µF-0.0022µF
		6.3Vdc		0.0047µF-0.0047µF
	2.00±0.20x1.25±0.20	25Vdc		0.0047µF-0.0047µF
	1.00±0.20x0.50±0.20	6.3Vdc		0.0022µF-0.0022µF
	1.00±0.15x0.50±0.15	6.3Vdc		0.0047µF-0.0047µF

---
